3200-C CNC Sintered Stone Cutter

A 3-axis cutting platform for large-format sintered stone, marble and quartz. The system is built around controlled slab positioning, accurate cutting and clean finished edges.

Maximum 3200 × 1600 mm
Straight and programmed cuts
Factory sample testing available

Request price & configuration View specifications

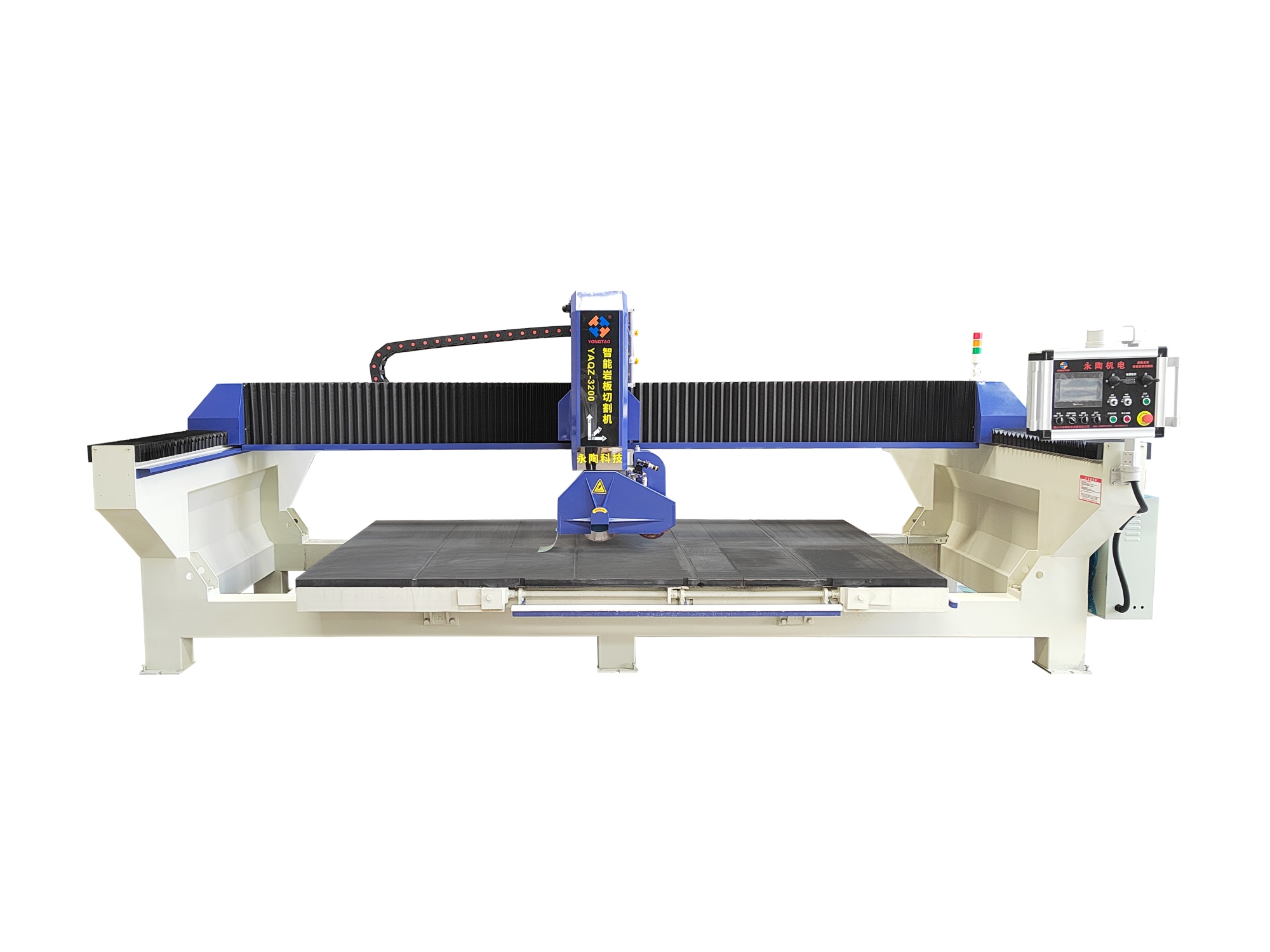

3200-C · 3-axis CNC Yongtao 3200-C CNC sintered stone cutting machine

3200Max length · mm

1600Max width · mm

3CNC axes

Application fit

For workshops cutting large, brittle slabs.

Standard stone machinery can produce edge chipping or broken corners on sintered stone when the machine structure, blade path and operating settings are not matched to the material.

The 3200-C is positioned for fabricators producing kitchen countertops, vanity tops, dining tables, wall panels, stairs and other large-format parts from sintered stone, quartz or marble.

You need to process slabs up to 3200 × 1600 mm
Finished edge integrity matters more than raw cutting speed
You want programmed dimensions instead of repeated manual setting
You can supply actual material for a pre-shipment test

Sintered stone slab cutting equipment — **Validate with your material**Send slab thickness, cut list and edge-quality requirement before quotation.

Machine functions

Every feature supports a measurable cut result.

The right configuration is confirmed against the customer’s slab, product geometry and target output. Optional functions are stated separately in the quotation.

Large-format working area

Supports parts within a stated maximum cutting envelope of 3200 × 1600 mm.

Programmed positioning

CNC control organizes repeat dimensions and reduces dependence on manual measuring for each cut.

Material-specific setup

Blade, feed rate and cutting parameters are matched to sintered stone, quartz or marble.

Edge-quality control

The test standard focuses on a clean cut with controlled chipping and intact slab corners.

Operator-friendly workflow

Clear steps for positioning, setting, test cutting and production improve handover and training.

Factory acceptance test

Processing results can be reviewed on the customer’s material before packing and delivery.

Machine model: 3200-C
Control type: 3-axis CNC
Maximum cutting dimensions: 3200 × 1600 mm
Primary materials: Sintered stone, marble and quartz
Primary process: Slab sizing and programmed straight cutting
Target result: Accurate dimensions, clean edges, reduced chipping and corner breakage
Electrical standard: Configured for destination voltage and frequency; confirm with inquiry
Tooling: Blade and process package matched to material, thickness and finish requirement
Acceptance test: Video test or customer material test available before shipment
Installation support: Remote guidance or on-site arrangement according to order scope

Production workflow

From drawing to repeatable slab parts.

The page tells an operator what actually happens, not just what the machine is called.

Confirm the cut list

Define finished dimensions, quantities, edge conditions and any allowance for later polishing.

Load and reference

Position the slab, establish the machine reference and verify safe support before cutting.

Set the program

Enter or select dimensions, cutting sequence and material-appropriate operating parameters.

Inspect the output

Check dimension, edge chipping and corner integrity before releasing the batch.

Delivery scope

Machine delivery is only one part of the handover.

The final commercial offer should list each supplied item so installation responsibilities are clear on both sides.

Configuration sheet

Machine functions, destination voltage, tooling and agreed optional equipment.

Factory test

Operational checks and cutting result recorded before packaging.

Export packaging

Equipment secured for container loading and international transport.

Installation guidance

Site preparation, positioning, connection and commissioning steps.

Operator training

Daily operation, safety, routine inspection and first-line troubleshooting.

Before quotation

Questions buyers should settle early.

These answers prevent the most common mismatch between a machine specification and the customer’s real production.

Can the 3200-C cut every thickness of sintered stone?

Thickness should be confirmed with the material brand, slab specification and required finish. Yongtao can run the supplied material or an equivalent sample and state the applicable process in the quotation.

How do we judge “no chipping” during a test?

Agree the inspection method before testing: viewing distance, acceptable edge condition, corner integrity and whether the edge will receive a later polishing or mitre process.

What information is needed for an accurate price?

Send material, maximum slab size, thickness range, cutting drawings, target output, destination voltage and any handling or layout constraints.

Is installation and training included?

Remote guidance and operator materials can be included; on-site commissioning depends on the destination and order scope. The commercial offer should clearly identify what is included.
