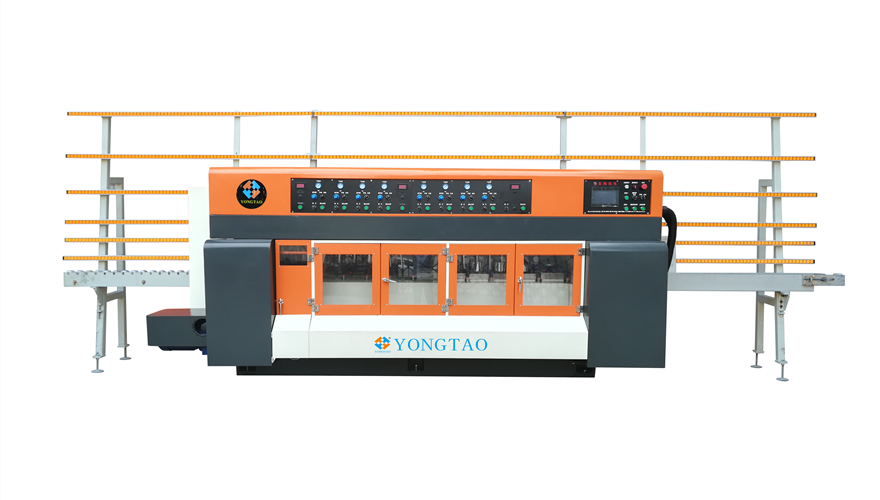

YSMD 11 Head Automatic Granite Flat Bevel Edge Polishing Machine
Yongtao 11 head granite flat bevel polishing machine, 5 heads for flat edge polishing, 5 heads for bevel polishing, 1 head for reverse cutting, can process granite
Product introduction
Description of YSMD 11 Head Automatic Granite Flat Bevel Edge Polishing Machine
YSMD 11 Head Automatic Granite Flat Bevel Edge Polishing Machine,This granite edge machine is one of the latest models of YONGTAO Machinery.The machine is mainly used to process all kinds of single or double thick slab for flat edge, bevel edge, chamfer. It rely on the polished surface to locate, solving the problem of unevenness chamfering since different thickness. The polishing head adopt snail buckle and paste grinding slice, fast replace. The polishing can be automatic controlled, high efficiency, high precision, low cost. It’s a popular machine in the market. We have granite edge machine for sale.
Marble Bevel Edge Polisher:
Parameter of YSMD 11 Head Automatic Granite Flat Bevel Edge Polishing Machine
Machine specifications
| Nos. of squaring head | 1pc |
|---|---|
| Nos. ofpolishing head | 4pc |
| Nos. Of 45 degree chamfer head | 1pc |
| Nos. Of chamfer polish head | 4pc |
| Diameter of polishing wheel | 125mm |
| Processing width | 100-2800mm |
| Max processing thickness | 60mm |
| Processing speed | 0.5-3m/min |
| Total power | 18kw |
| Air consumption | 30L/min |
| Water consumption | 300L/min |
| Size of machine | 7.5m*1.25m*2.3m (with frame) |
| Weight | About3500kg |
Technical data reflects the legacy product record. Confirm voltage, options and final configuration with the approved quotation.
Bring the material. We’ll plan the process.
Send your material, maximum dimensions and production target. We will help you confirm the suitable machine configuration.
